For manufacturer

The MobiWAPS point interlocking control is designed for points manufacturers to put into service points and its drives in a manufacturing plant.

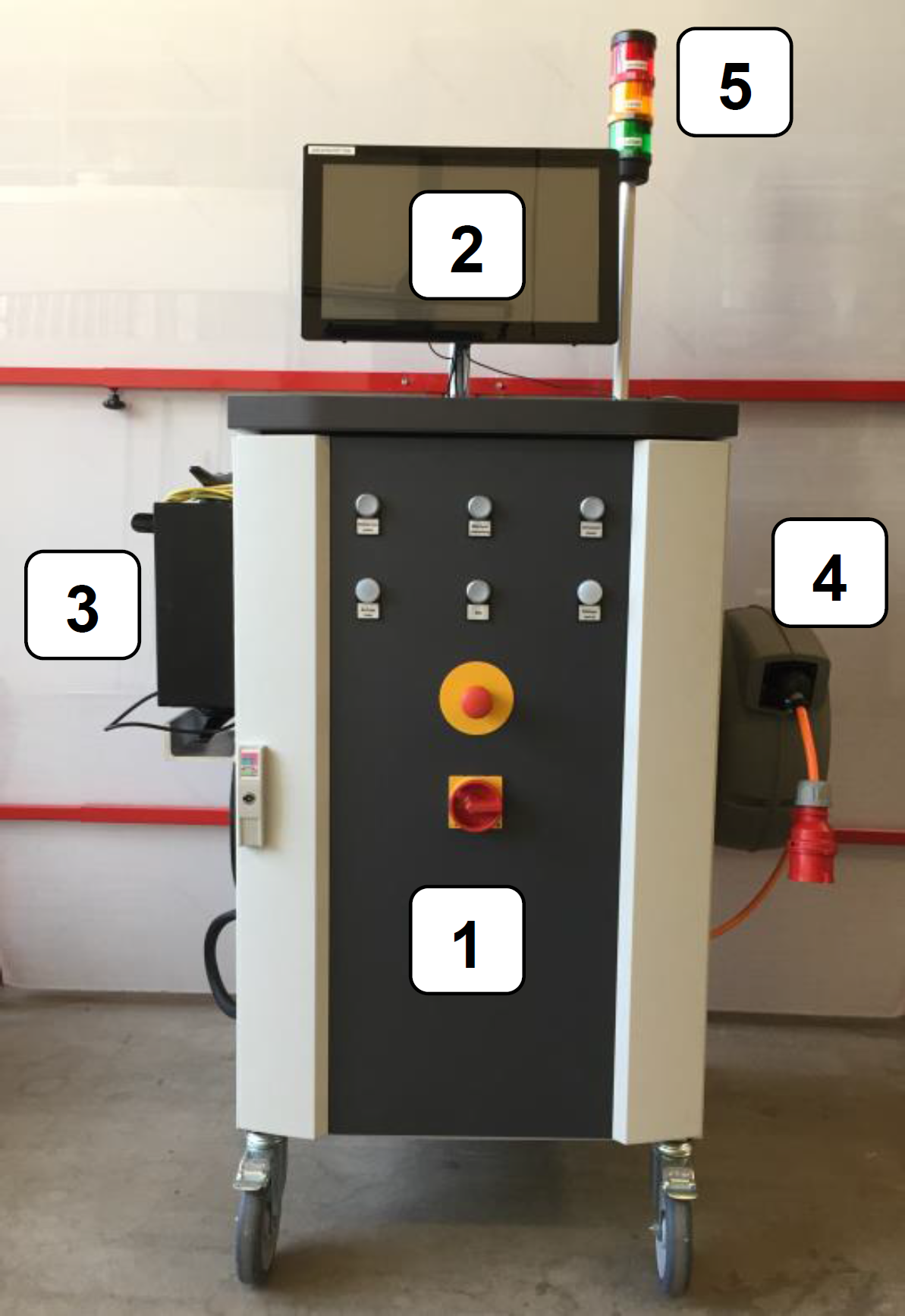

Components:

1. PLC control system with security function, illumi-
   nated state control and command buttons, pro-
   grammed to interact as a real interlocking sys-
   tem
2. IPC Industrial Windows PC with screen running
   the MobiWAPS Software with its measuring pin.
3. 10m cable Interface to connect the point drive
   230 VAC or 400 VAC.
4. Power interface 400 VAC
5. Status light

Other products concerning MobiWAPS device:

• MobiWAPS – mobile railway point inspection system
• MobiWAPS training unit – accessory for MobiWAPS
• MobiWAPS Giraf- point inspection for setting force measurement in the field
